10pcs Lever Nut Connector, Compact Wire Connector, Quick Disconnector 3 Pin One Way Wire Connector

Product composition

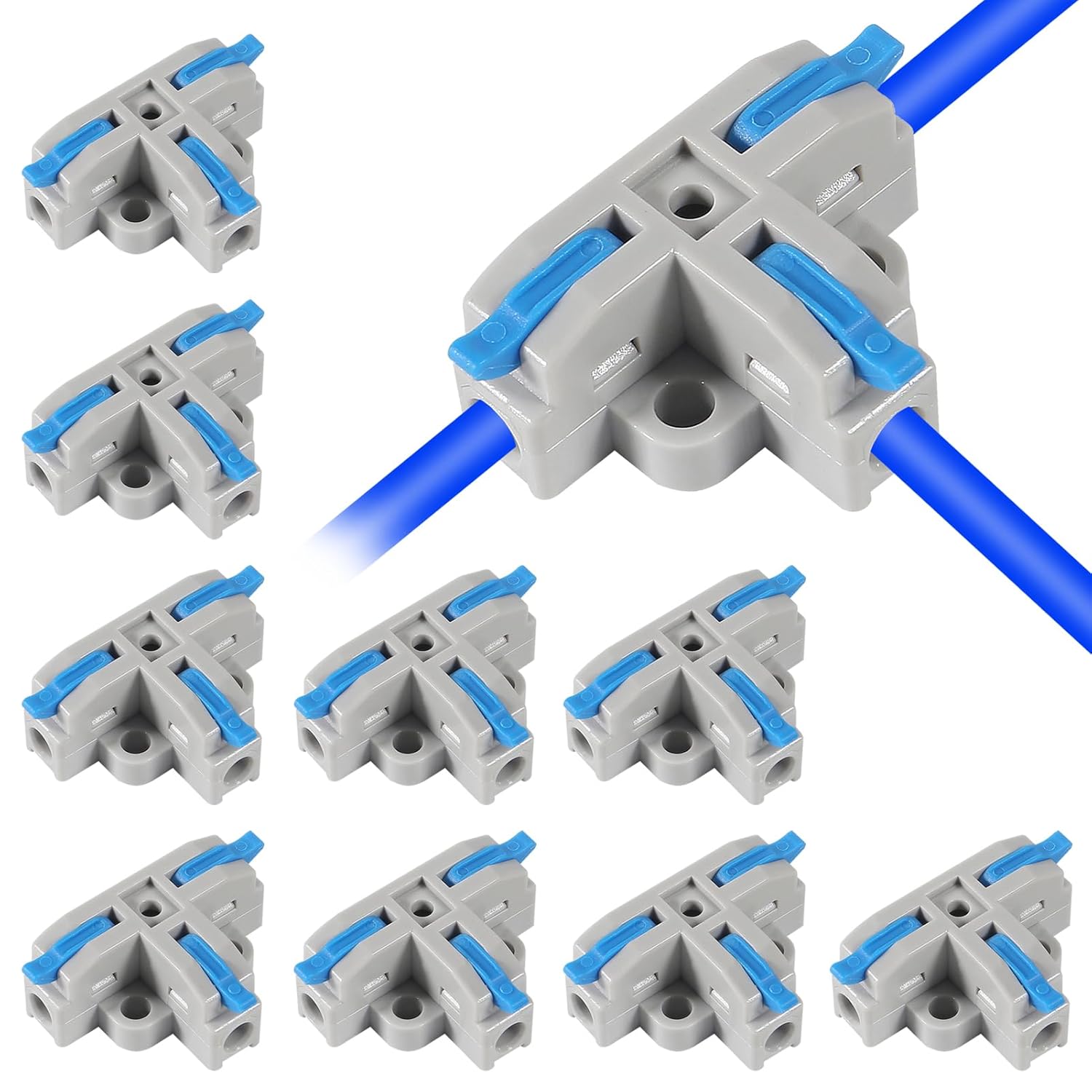

Product quantity: A set of 10 lever nut connectors can meet the needs of multiple wire connection points and is suitable for small electrical installations, repairs or DIY projects.
Dimensions: From the perspective of appearance, the overall length is about 35mm (1.37 inches), the width is about 24mm (0.94 inches), and the height is about 15mm (0.59 inches). It is relatively compact and easy to install and use in limited spaces.

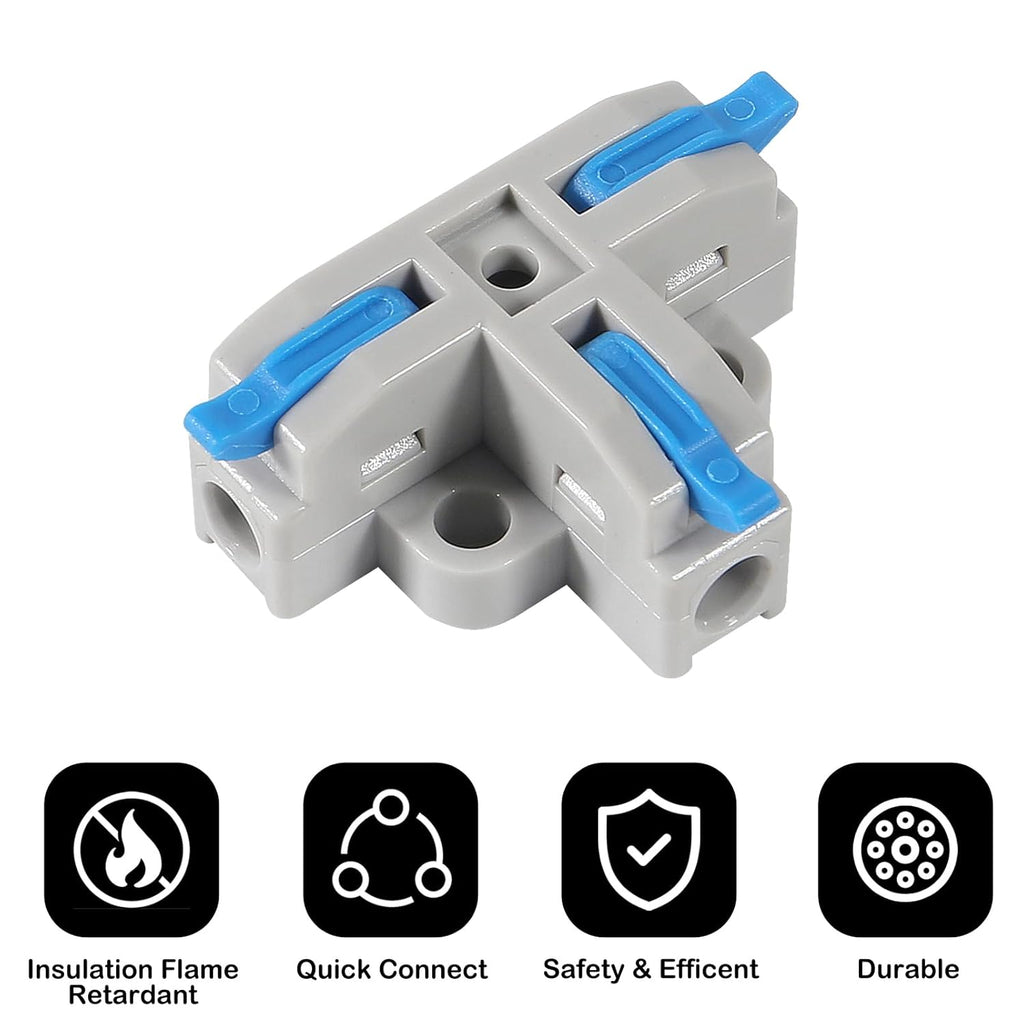

Structural design: It adopts a 3-pin one-way design with a lever operating component. By operating the lever, the wires can be quickly connected and disconnected, and the operation is simple. The blue lever part is conspicuous and easy to identify and operate. The product is also equipped with mounting holes for easy fixing on electrical equipment or mounting boards.
Electrical parameters
Rated current: 32A, which means that the connector can safely carry 32 amperes of current under normal working conditions, which can meet the wire connection needs of some medium-power electrical equipment.
Rated voltage: 600V, indicating that the connector can work normally under a voltage environment of up to 600 volts, and is suitable for common low-voltage electrical systems.
Withstand voltage: 4KV, indicating that the connector can withstand a voltage shock of 4000 volts and has good electrical insulation performance and safety.
Applicable wire specifications:
Solid wire: The applicable cross-sectional area range is 0.08mm² - 4mm², corresponding to the American wire gauge (AWG) of 28 AWG - 12 AWG.
Stranded wire: The applicable cross-sectional area range is 0.08mm² - 4mm², corresponding to the American wire gauge (AWG) of 28 AWG - 12 AWG.
Soft wire: The applicable cross-sectional area range is 0.08mm² - 2.5mm², corresponding to the American wire gauge (AWG) of 28 AWG - 14 AWG.
Operating temperature range: - 40°C - +105°C, indicating that the connector can work normally in a relatively wide temperature environment, whether in cold areas or high temperature environments, the stability of the connection can be guaranteed.
Applicable scenarios

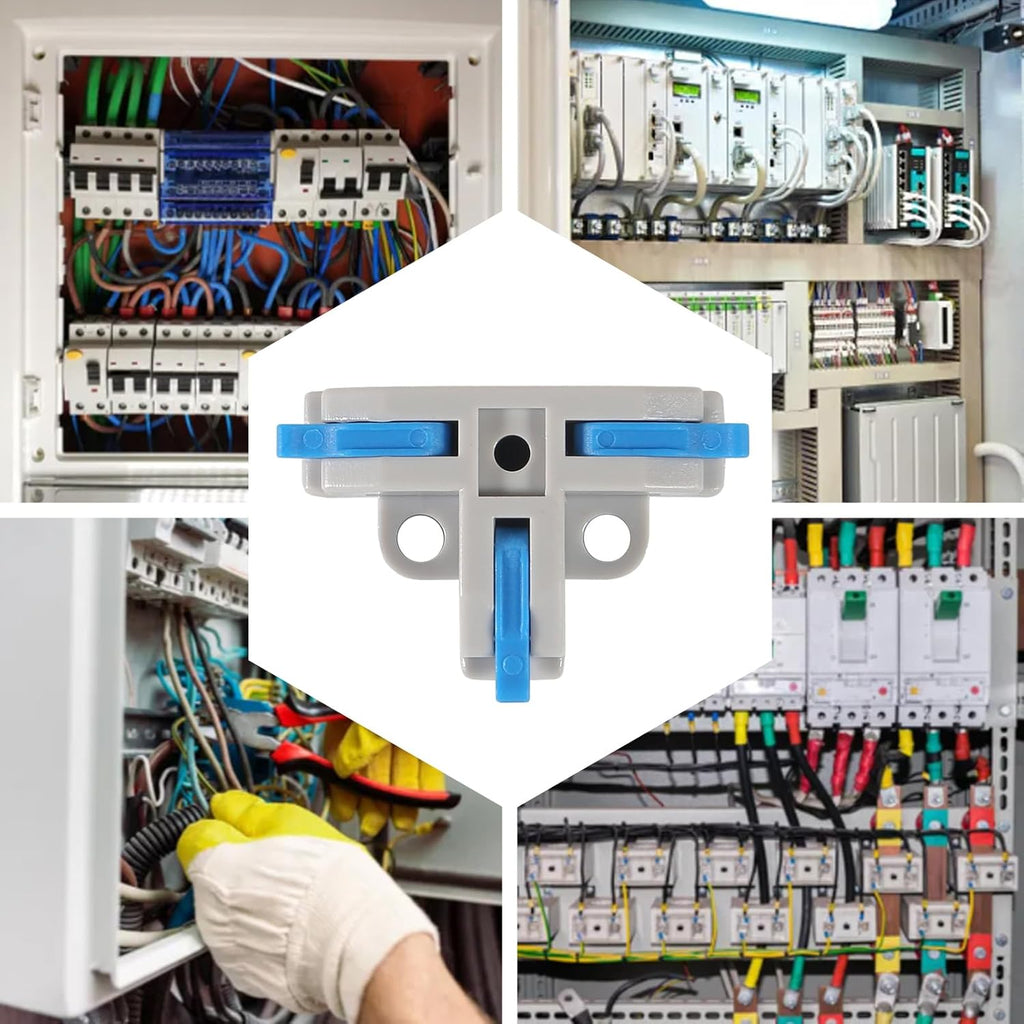

Home electrical installation: In the lighting system, socket circuit and other wire connection scenarios in home decoration, wires can be quickly connected, such as connecting wires of lamps, switches, sockets and other equipment, which is convenient, fast, safe and reliable.
Automotive electrical system: Suitable for wire connection inside the car, such as the connection and maintenance of lines such as car lighting, audio, and electronic control systems. Its compact design and convenient operation method can adapt to the limited space inside the car.
Small electrical equipment: For some small electrical equipment, such as power tools, small appliances (coffee machines, hair dryers, etc.), during the production assembly or maintenance process, it can be used to connect internal wires to improve production and maintenance efficiency.
DIY electronic projects: In DIY electronic projects conducted by electronic enthusiasts, such as homemade smart devices and electronic toys, this connector can help quickly build circuits and realize wire connections between different components.
Product advantages

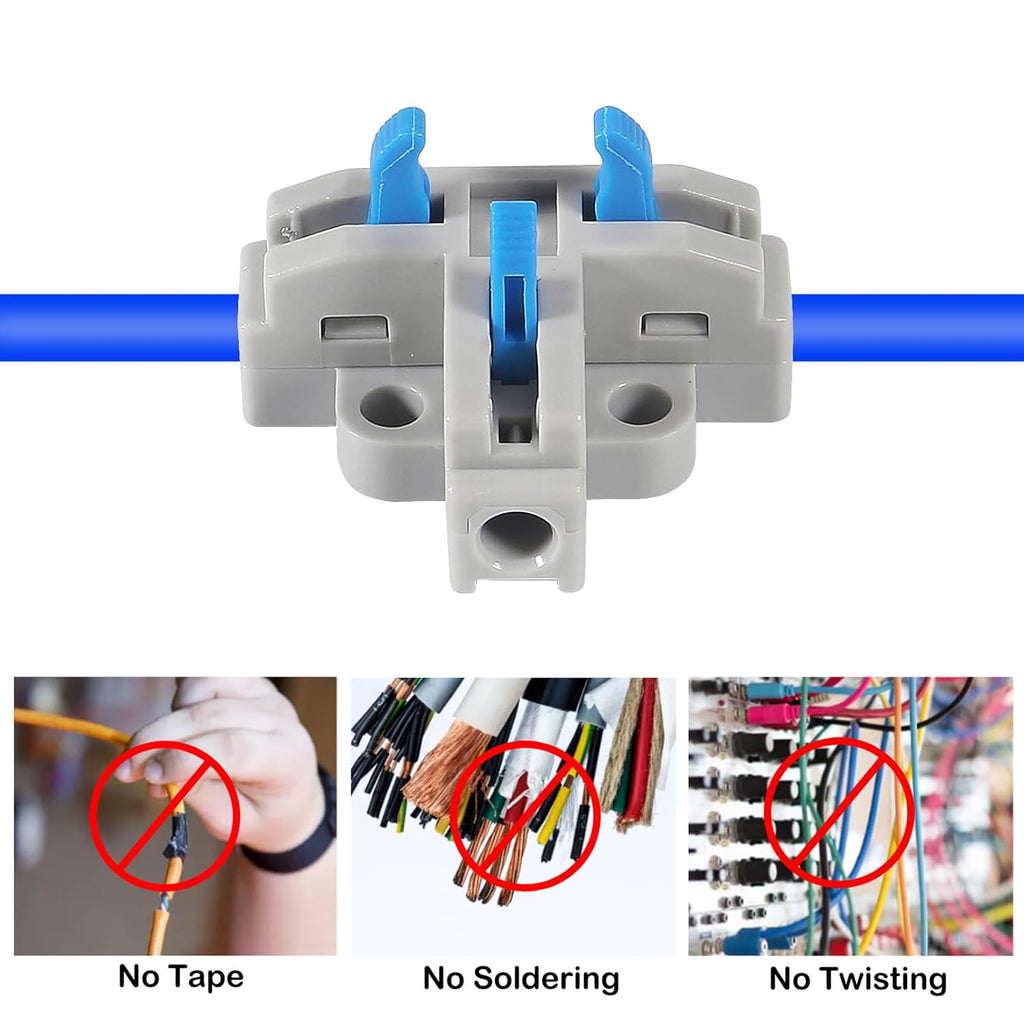

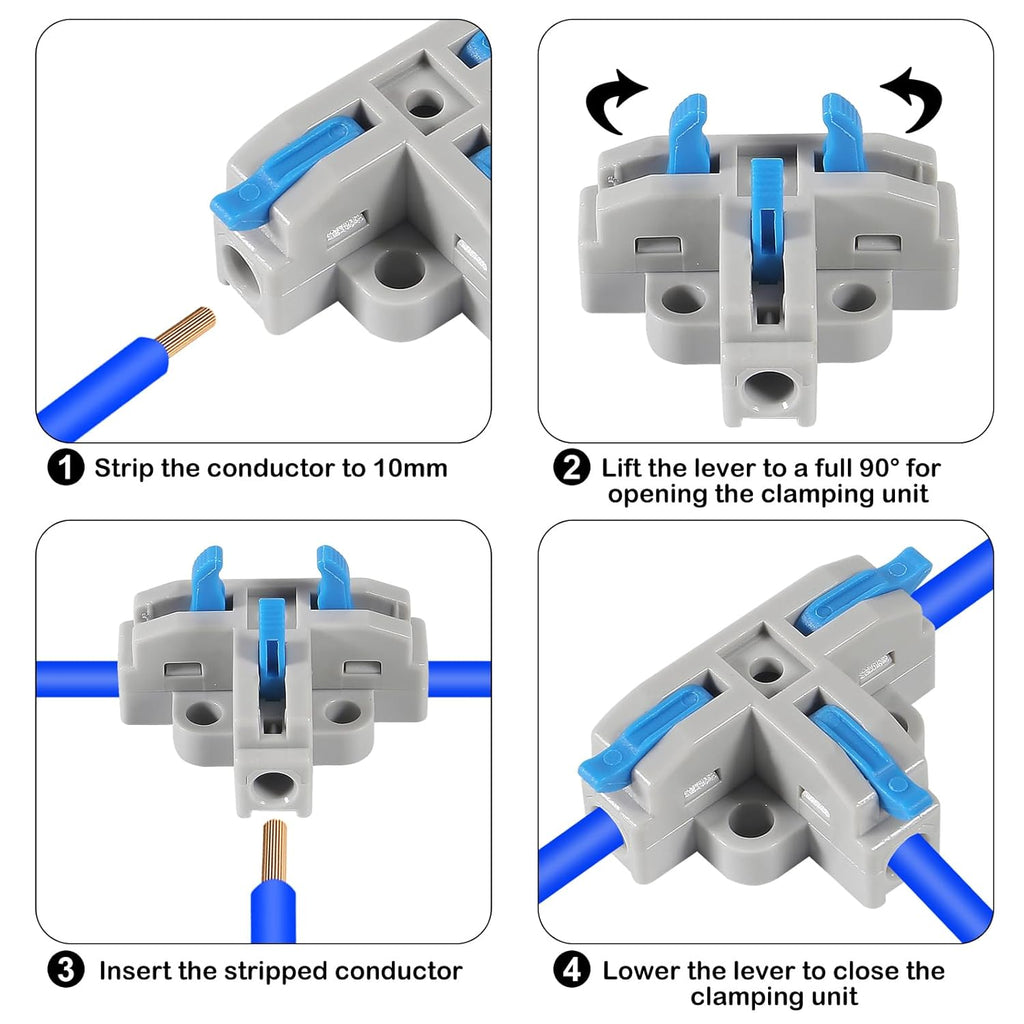

Easy installation: The connection and separation of wires can be achieved through lever operation without the use of additional tools, which greatly saves installation time and labor costs. Even non-professionals can easily operate.
Firm connection: The unique internal structure design can ensure the firm connection of the wires, effectively prevent the loose wires caused by vibration, pulling, etc., and ensure the stable operation of the circuit.
Wide applicability: It can adapt to solid wires, stranded wires and soft wires of various specifications, and has a wide operating temperature range and high withstand voltage value, suitable for a variety of electrical environments and equipment.
High safety: The rated current of 32A and the rated voltage of 600V, as well as the withstand voltage of 4KV, can meet the safety requirements of common electrical systems and reduce electrical failures and safety hazards.
Compact design: The small size is easy to install in a space-constrained environment, does not take up too much space, and improves space utilization.
